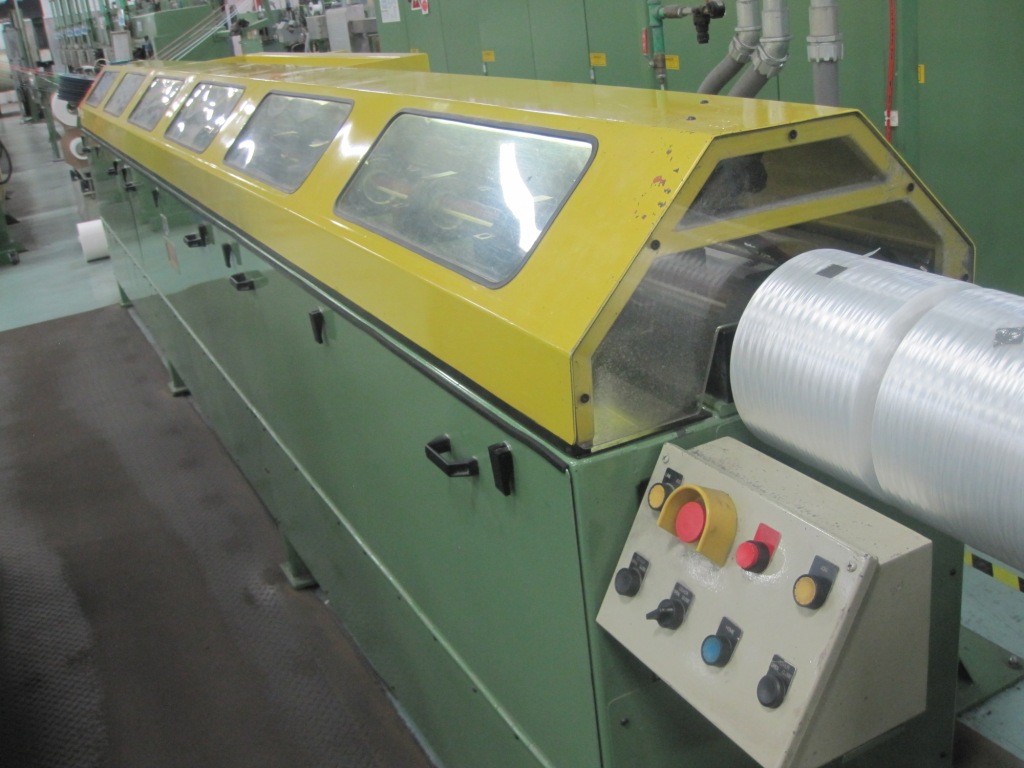

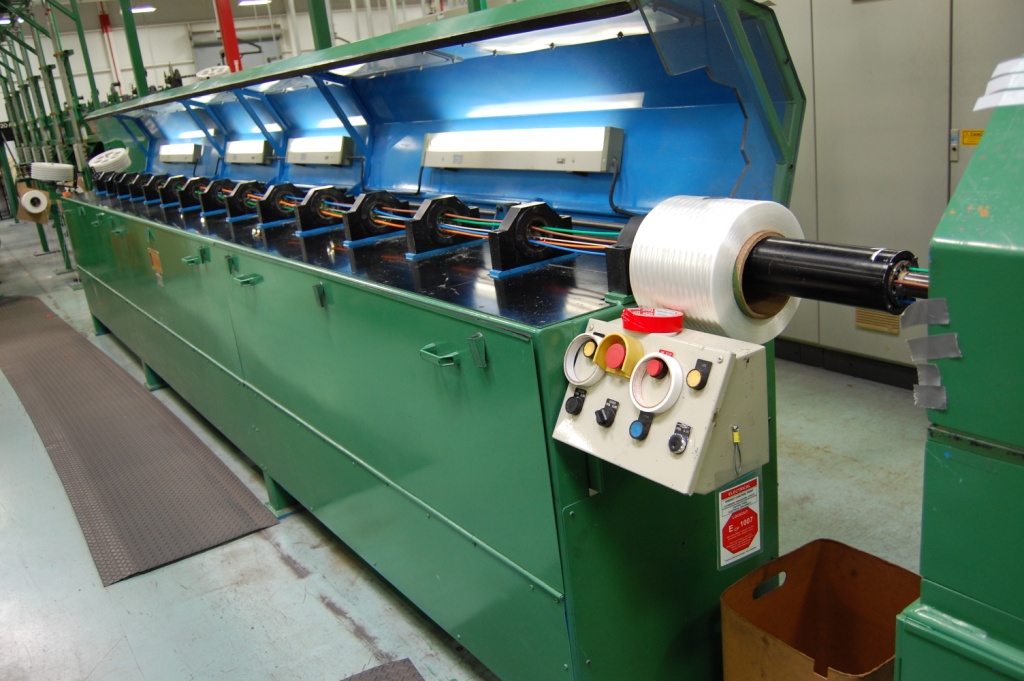

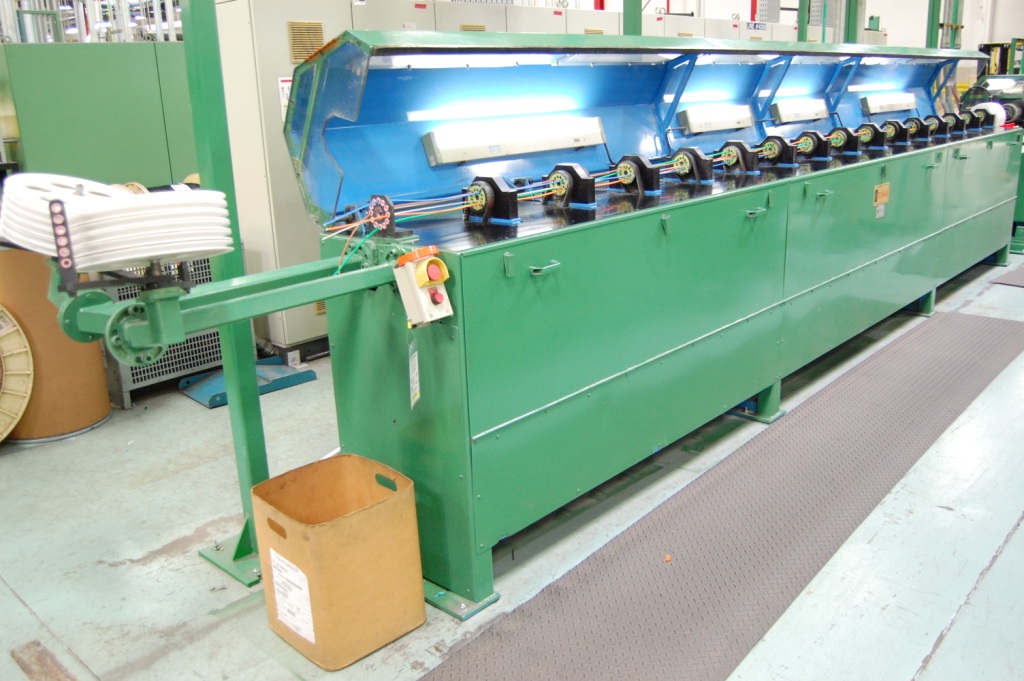

Tensor OS-1000 Oscillator/Strander

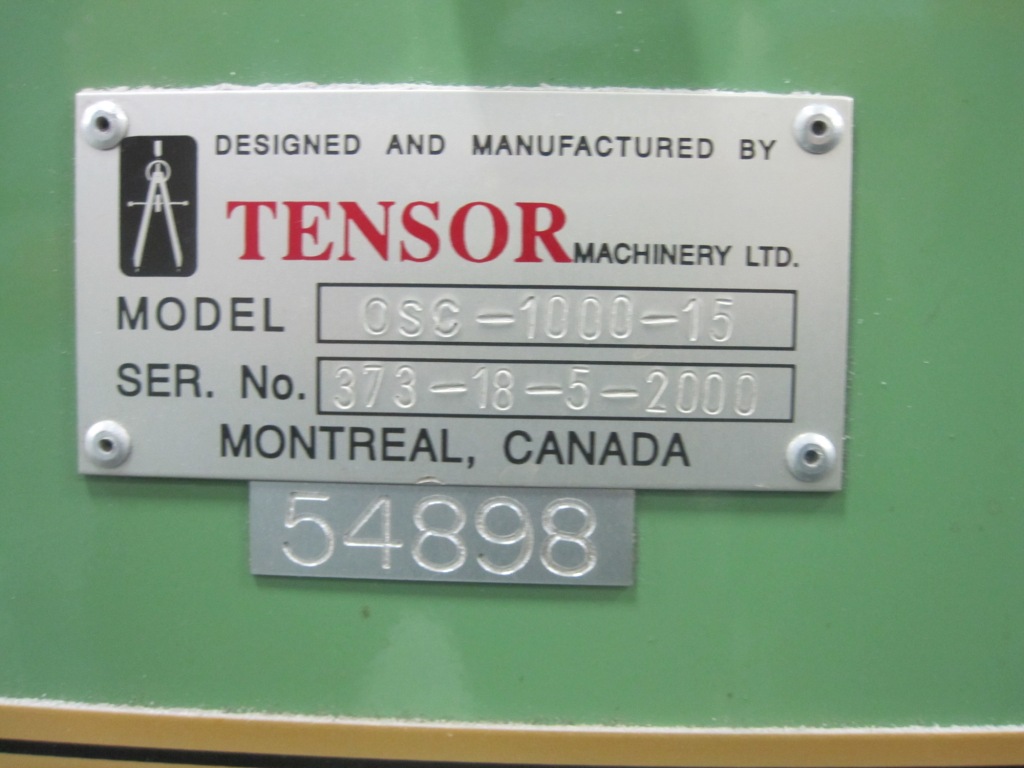

Model OSC-1000-15
Serial Number 373-18-5-2000
Year of Manufacture 2000
Wire line height 43"
Overall dimensions 20 ft7" x 3 ft 9" x 4ft 5" H
Dimensions of front circular section of the machine 3 1/2" Diameter, 17 1/2" Lenght
15 Holes in lay plate and 2 1/2" diameter
Ceramic yeylets in lay plate

For the Stranding of Optical Fiber tubes
Speed 1000rpm + over speed at reversal

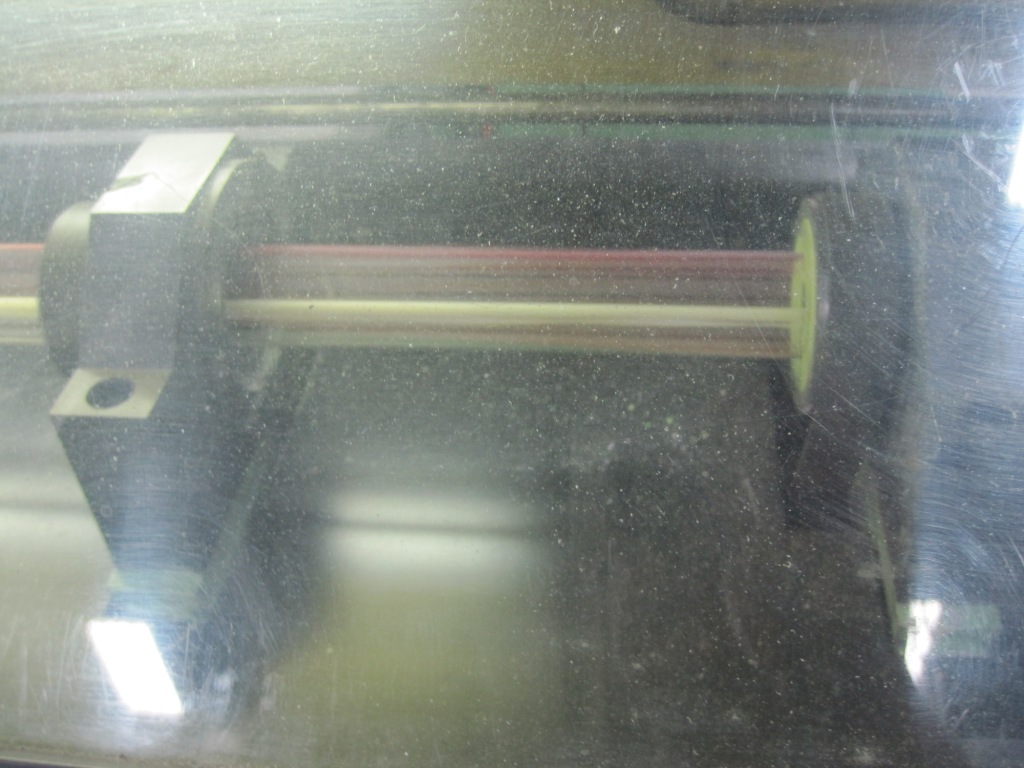

Polished Ceramic eyelets
Clearway 15 mm diameter
Lay length is adjustable from50 mm to 500 mm
Maximum No. of Turns between reversals is adjustable from 0.1 to 10 in 0.1 increments
Oscillator +/- 5 turns from neutral position (10 turns between reversals)
No of Tubes 15 ( 3 to 4 mm tube diameter)
Automatic 0  (parallel) positions for string up and E-stop
Two Allen Bradley Servo motors motors 1326AS-B690E, 460 V, 3000 RPM max speed, cont. output power 4.2 kw 40ºC
(1) Allen Bradley 1394 10 kw system module IMC-S Turbo, 380/460 V, 3 phase, 50/60 Hz, 13 Amps
(1) Allen Bradley 15 kw Axis module
(1) Allen Bradley 10 kw Axis module
Line Direction: Left to right
