96" Ceeco Drumtwister, Fork Type, Conc. Binders, Yr. Mfg. 1998, Still Installed.
|
Product Code:CBR833
Manufacturer:Ceeco Bartell
Location: Bonham, Texas
|
|
|
CEECO 2.5 m Drum Twisting Take Up
Serial Number: 2749-075-Mach 108
Maximum rotational speed: 100 RPM
Maximum product size: 100 mm (4”) diameter
Reel size: 2.5 m (96”) flange diameter x 1900 mm (75”) overall width
Maximum reel capacity: 10,000 Kg (22,000 lbs)
Electrics: 440 V / 3 Ph / 60 Hz
Lay plate and closing die stand

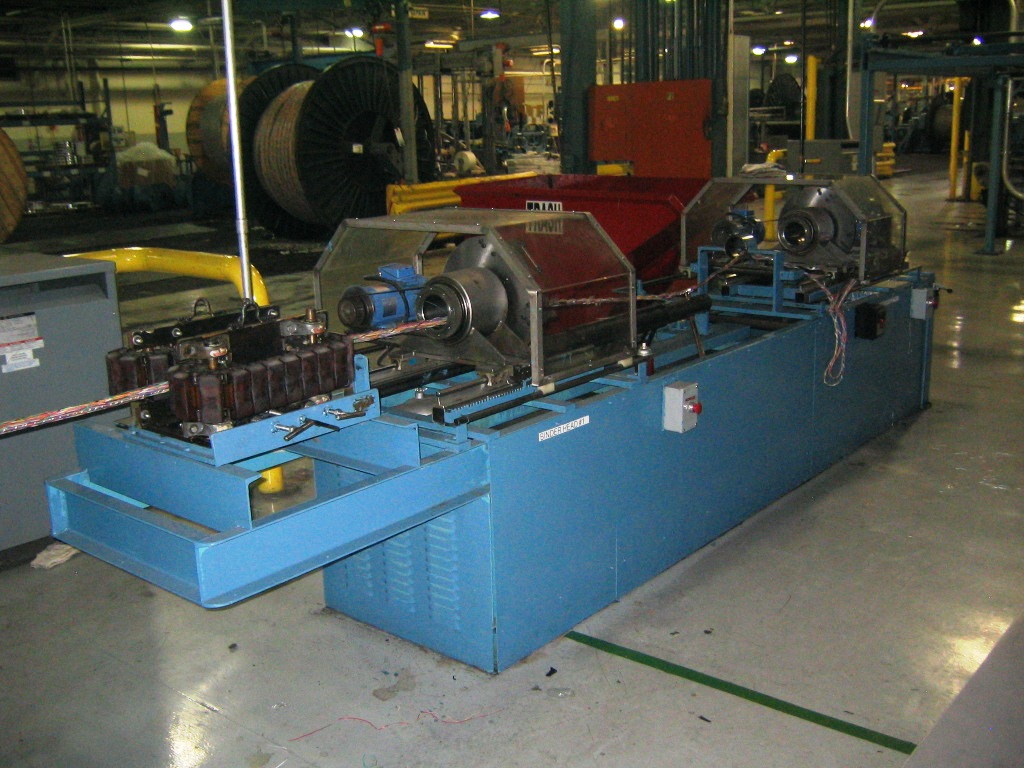

Twist lock caterpuller

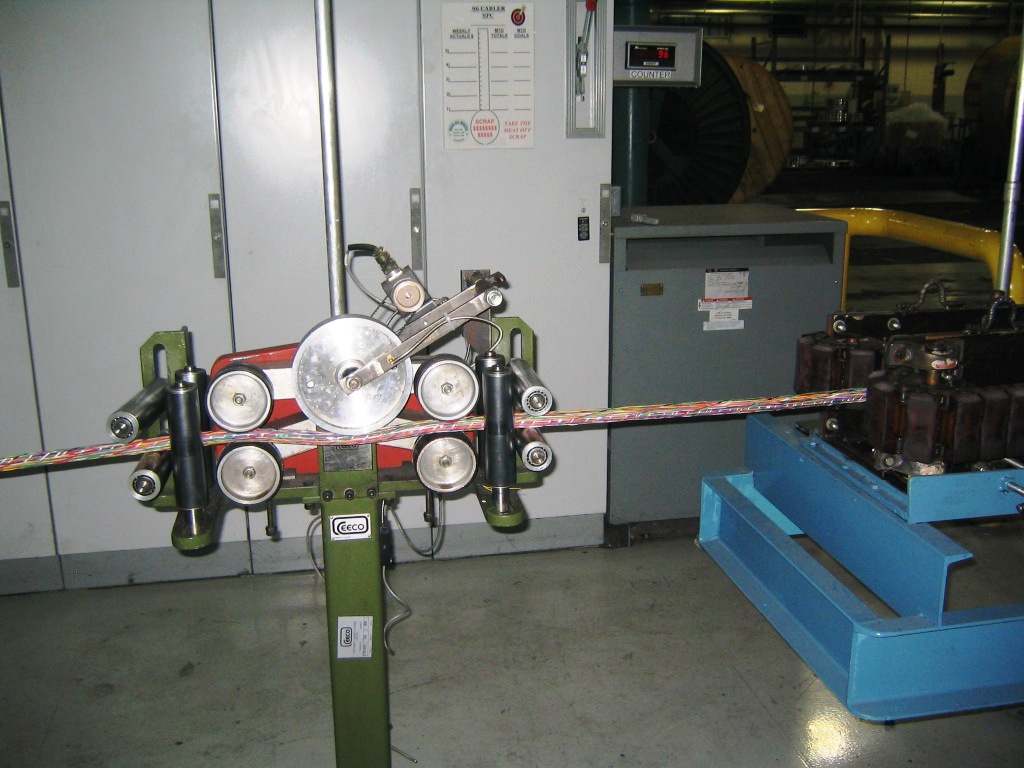

Measuring machine

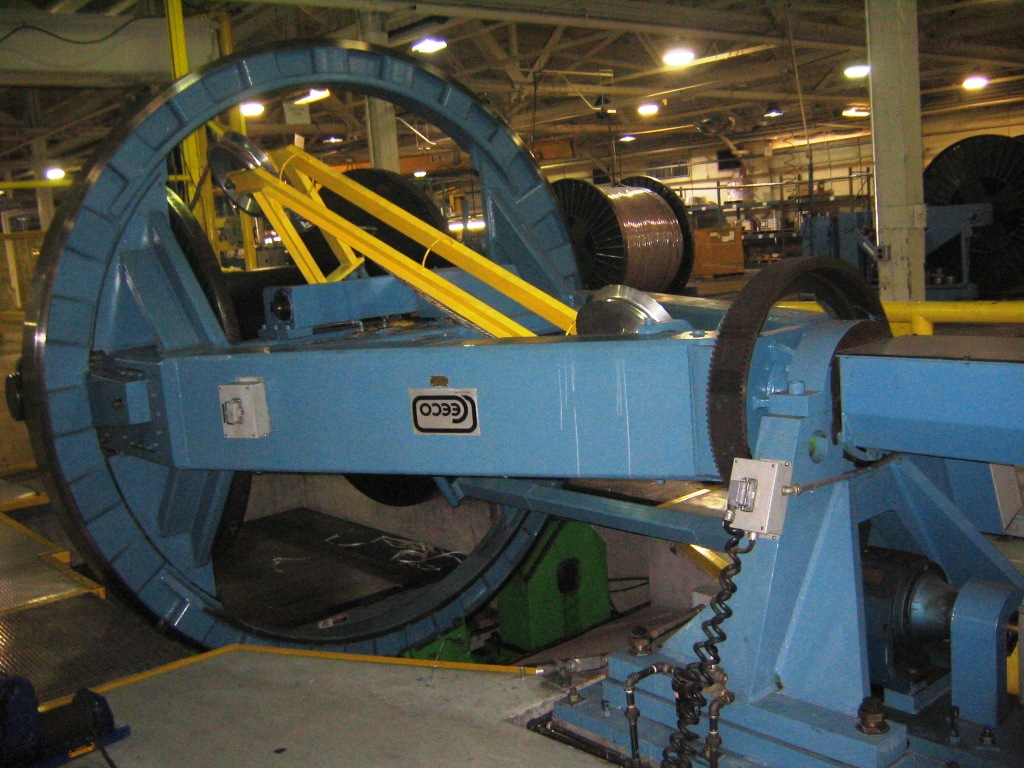

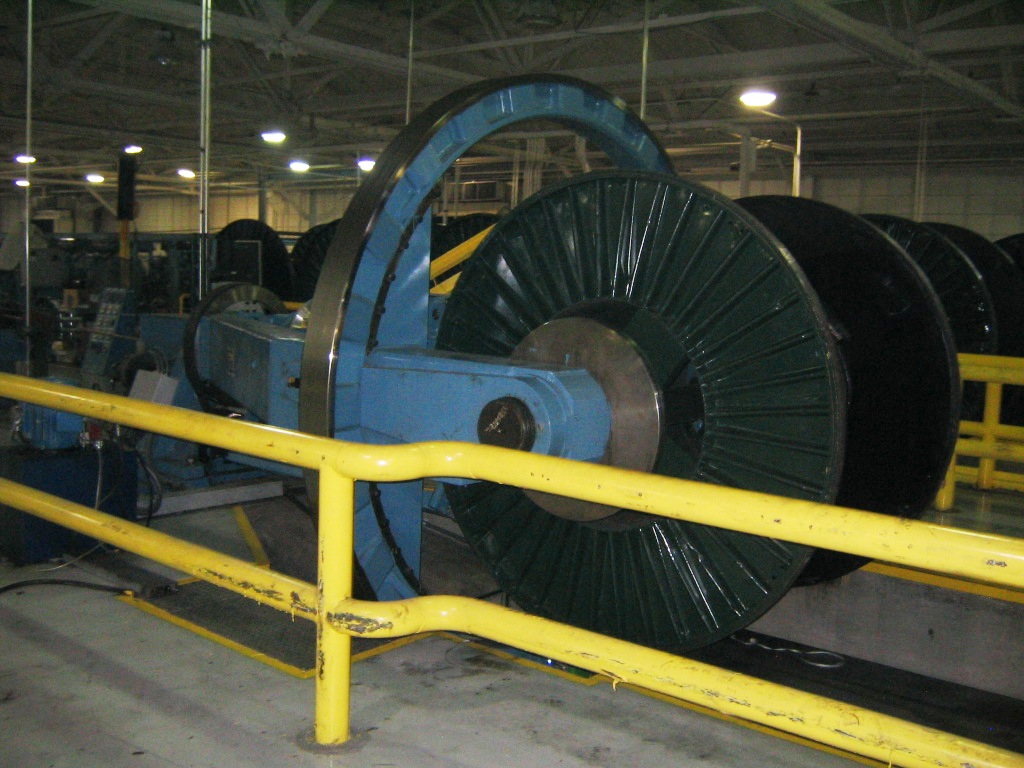

Ceeco 96” rotating takeup,
Open cradle fork style
Traverse mechanism
Disc brake
Front end trunnion support, Gesadur under rollers
Hydraulic reel lifting table
Through Bore: 4.5"

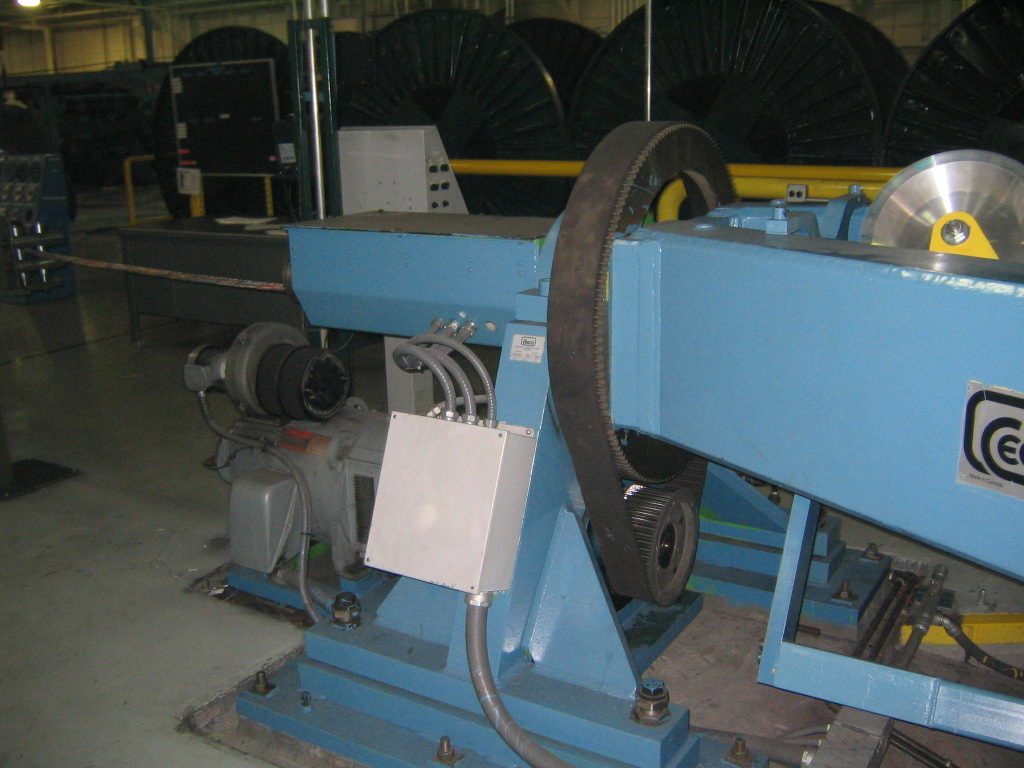

50 HP DC cradle motor
40HP DC reel motor
DC traverse motor

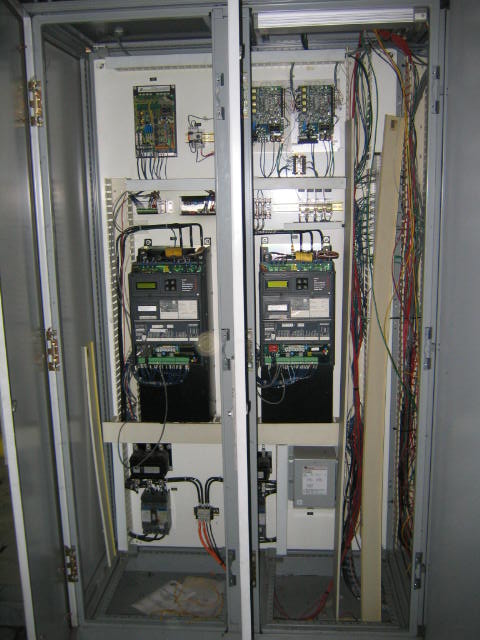

Drive panel
Eurotherm 590 digital drives for cradle and reel motors
Safetronics drive for traverse motor
Touch screen operator’s control stand
|
|
Wire & Plastic Machinery offers equipment: as is, test run and fully inspected, many machines can be reconditioned.
Items listed on the website are for infomational purposes only.
Please base your purchasing decision on
specific information you receive from your sales representative.
|
|
