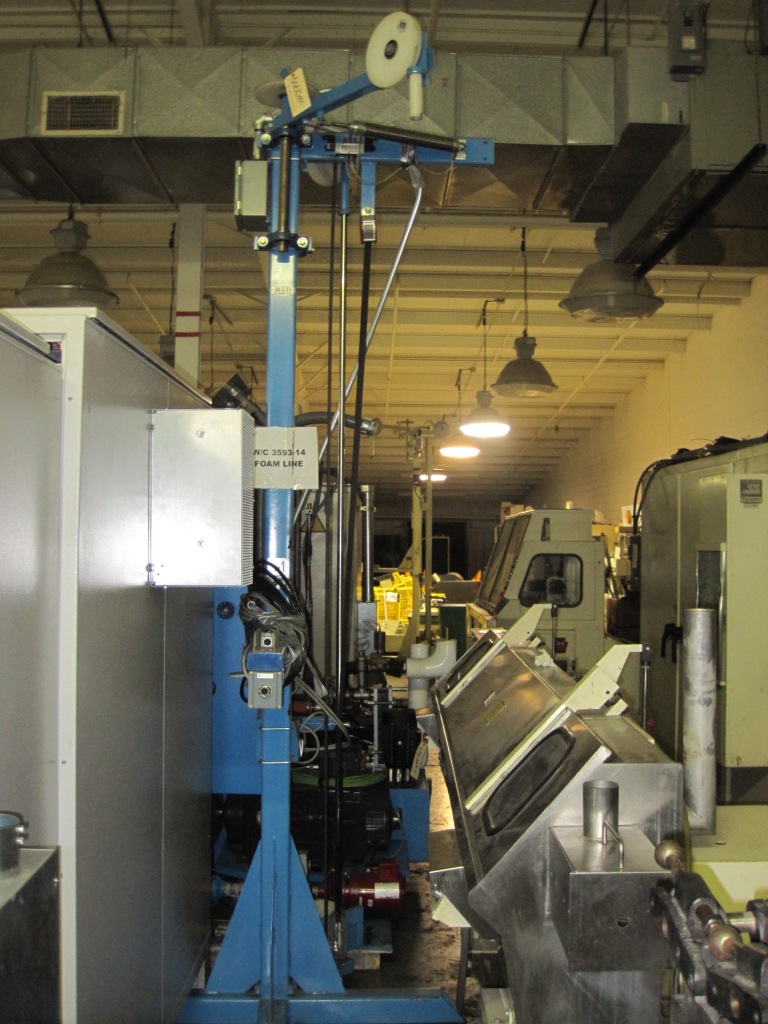

Niehoff Fine Wire Drawing Machine and Annealer
For a tandem line

Model: MT-200.4.1.L.2617
Serial Number: 10.60.056
Year of manufacture: 2007
For Cu. Wire (Soft / Hard)
Maximum Number of Drafts: 17
Wire Elongation draft (%): 26
Maximum Line Speed: 40 meters per second / 7,800 FPM
Maximum Entry size: 2.9mmm - 2.6mm (9 - 10 AWG)
Finish Diameter Range: 0.90mm - 0.30mm (19 - 28 AWG)

Line direction: Right to Left

Annealer
Model Number: RDA-200.3.R.L.1400
Serial Number: 10.60.057

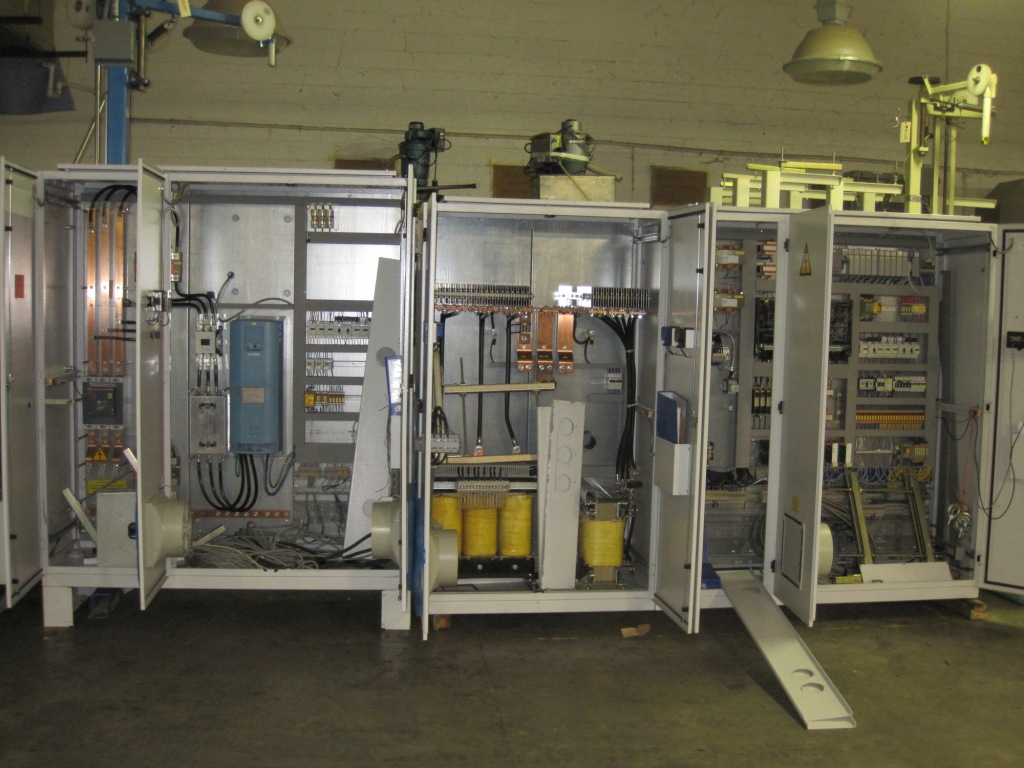

Siemens Drive
