SAMP Multi-Wire 10 Wire Drawing Line
Year of Manufacture 1990
Still Installed

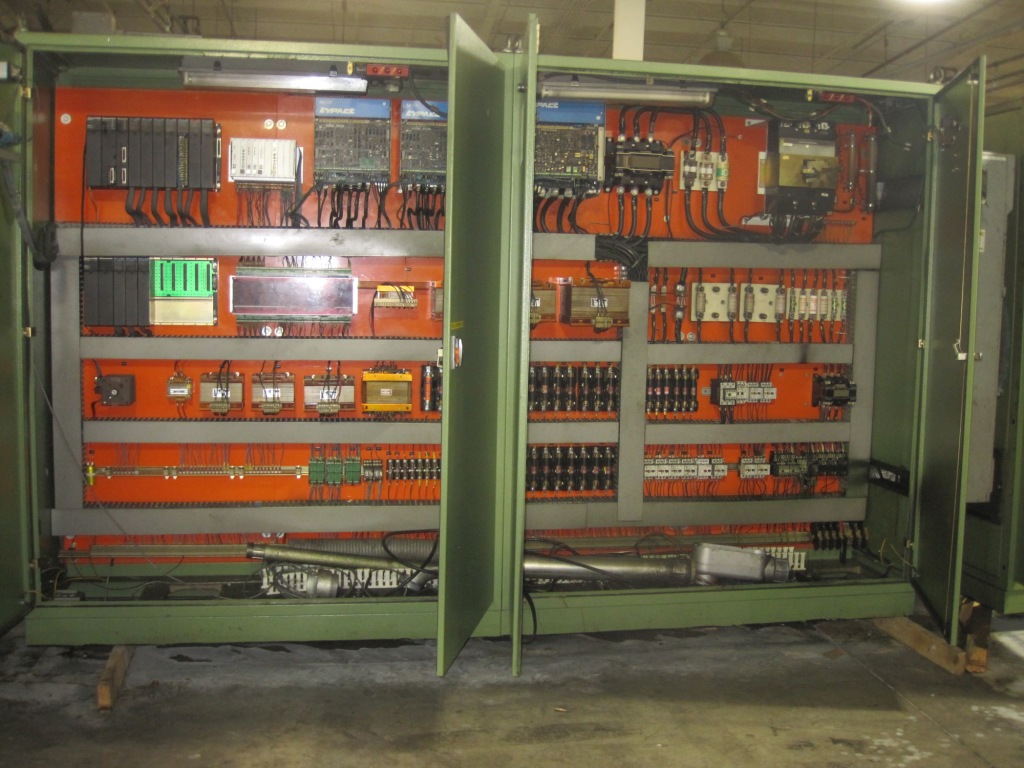

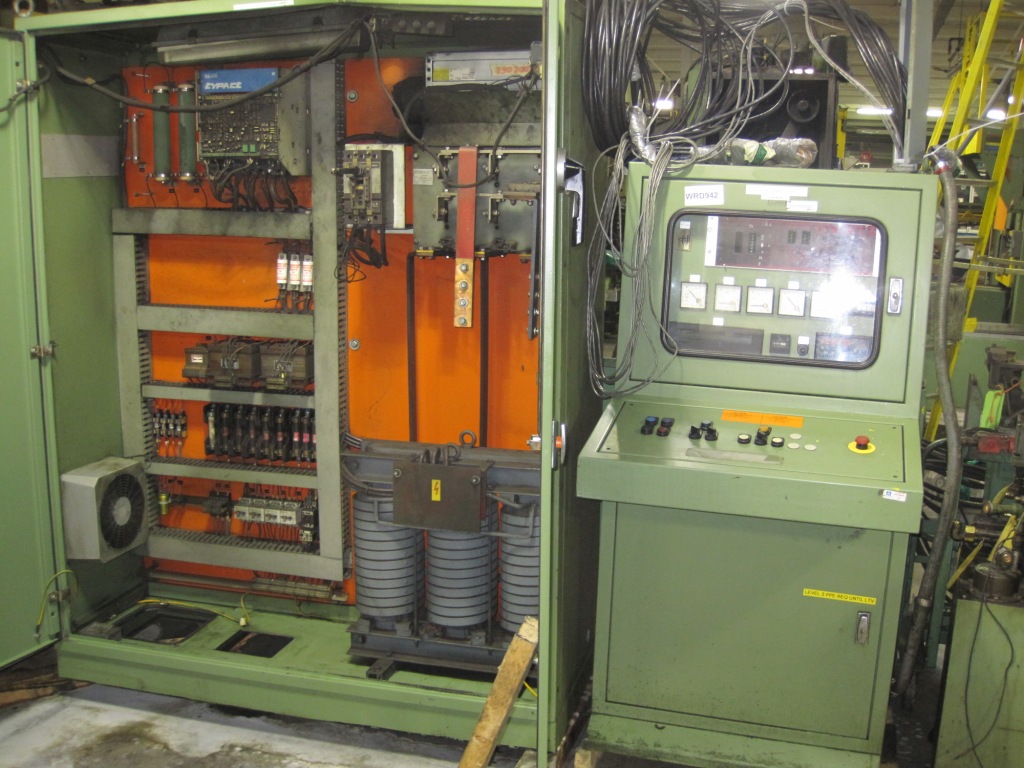

MLS-4B Control System

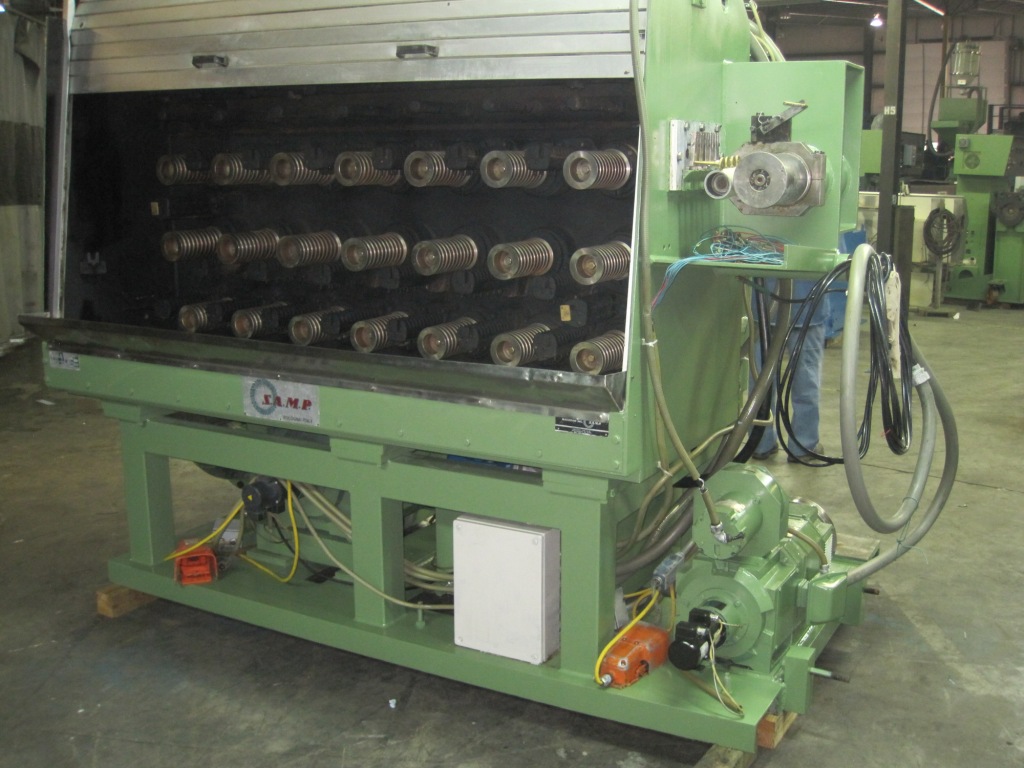

SAMP MT10.10.22 Wire Drawing Section
Serial No 89106.11
Year of Manufacture 1990
10 Wire, 22 dies max / 15 dies min
Max Inlet: 2mm annealed
Min outlet: 0.25 mm
200 HP DC main drive motor
50 HP DC secondary drive motor
100 mm Capstans, 135 mm Final capstans
Quick outlet diameter change system
SAMP Annealer
Model: R14.10.10 1250
Serial Number 8910603
Serial Number 8910614
Year of Manufacture 1990
460V, 30 Hz, 3 Phase
50 V, 1230 A
1250A / 50V

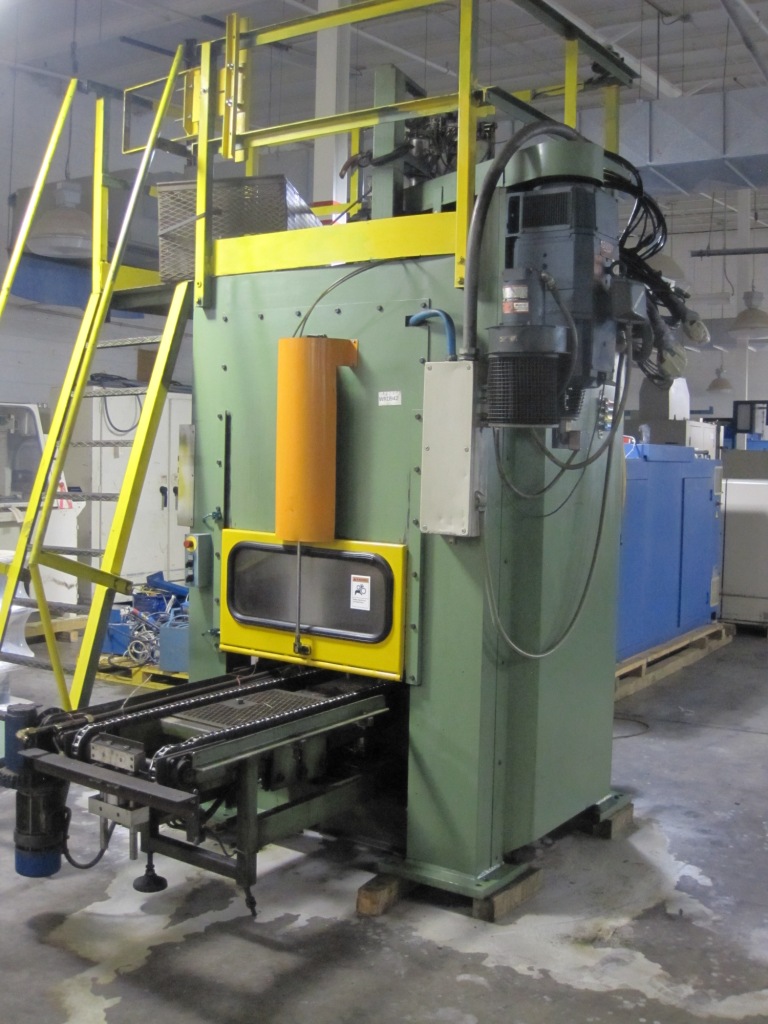

SAMP 630 mm Static Spooler
Model: SS/1-630
Serial Number 8910606
Performance:
Maximum Speed: 35 m/s
