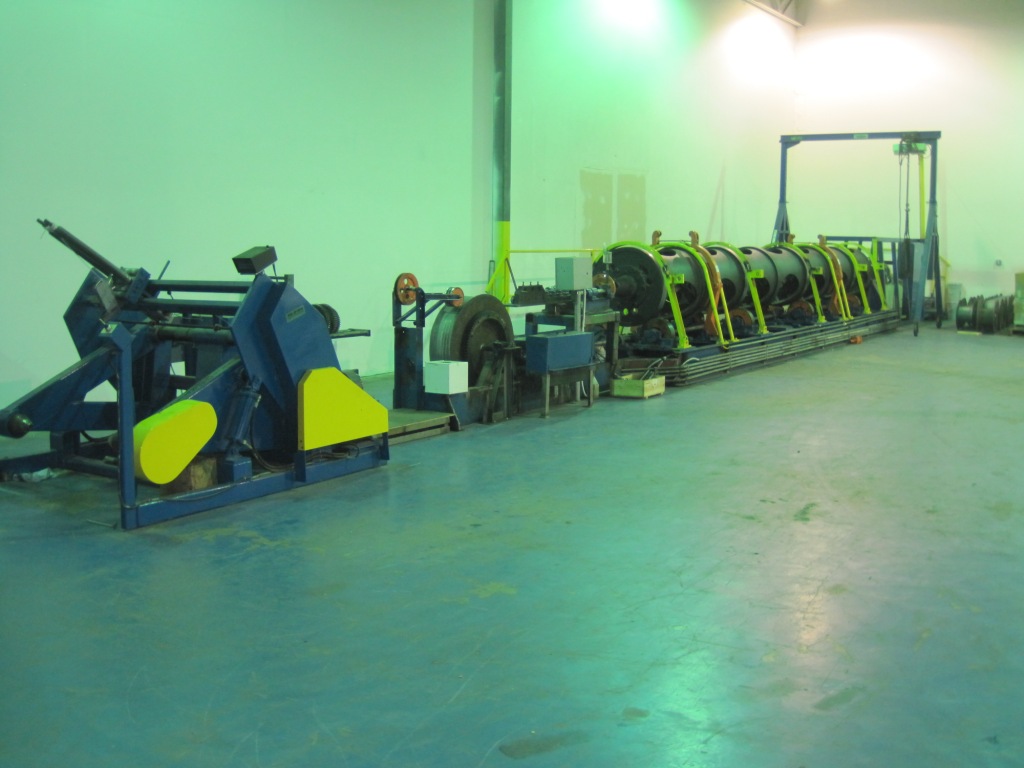

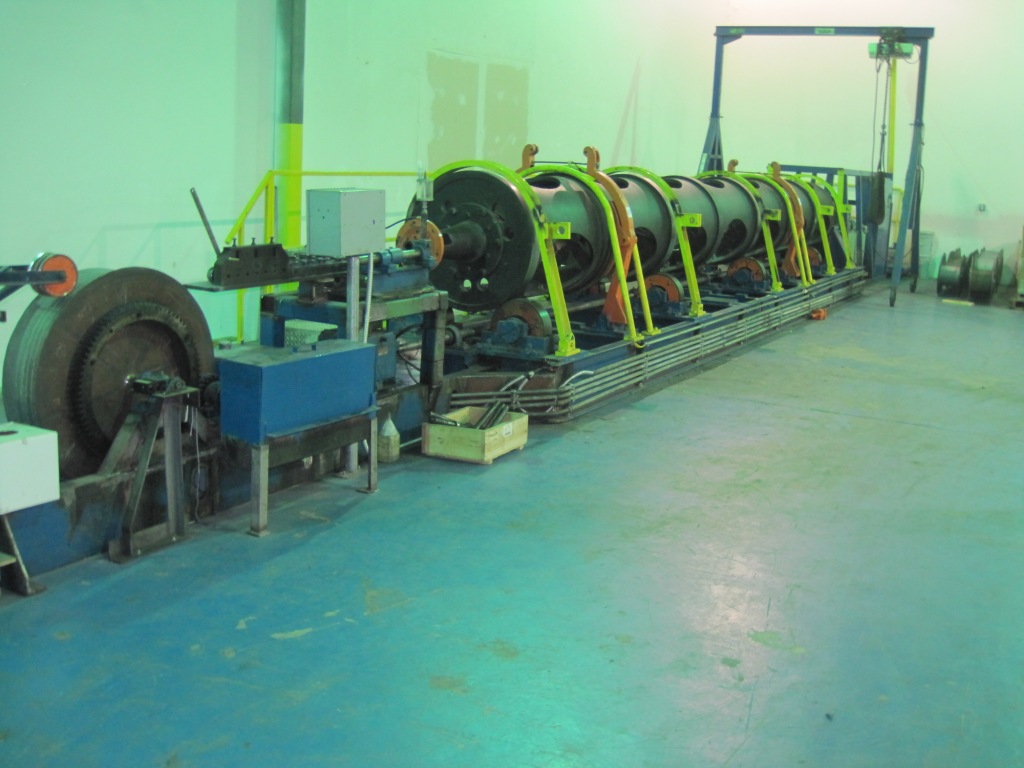

24" Syncro Tubular Strander

1+ 7 Wire
Serial Number: 1123-SY650

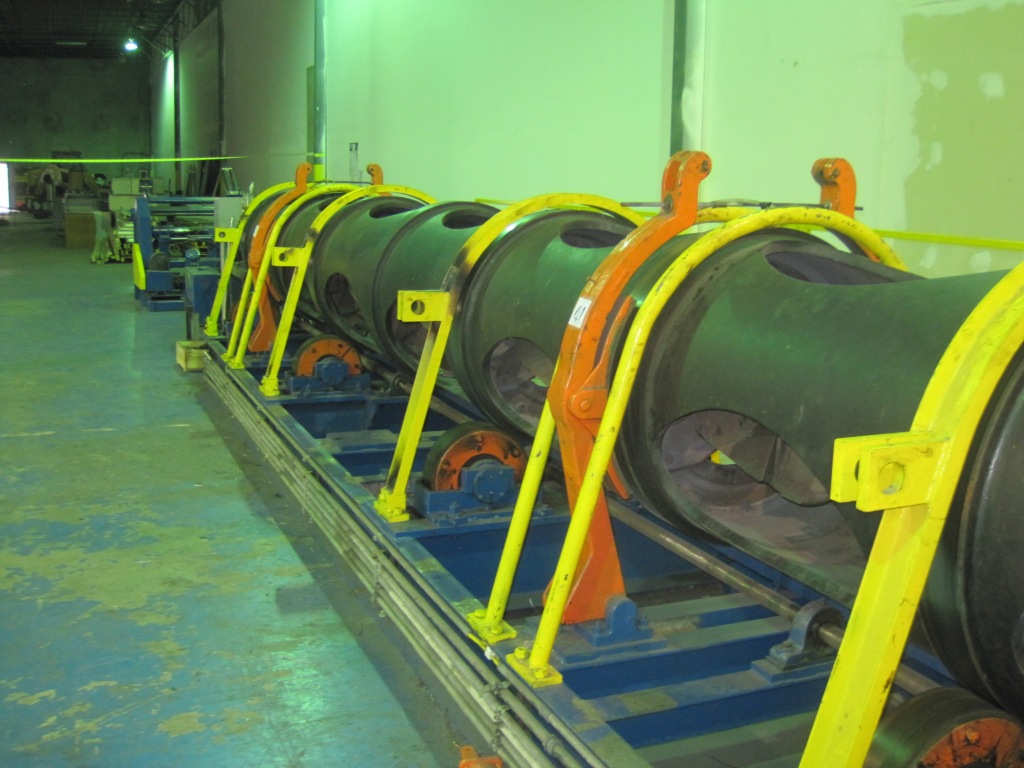

Shaft type cradles
Trunnion type
Change gears for lay adjustment
30 HP motor

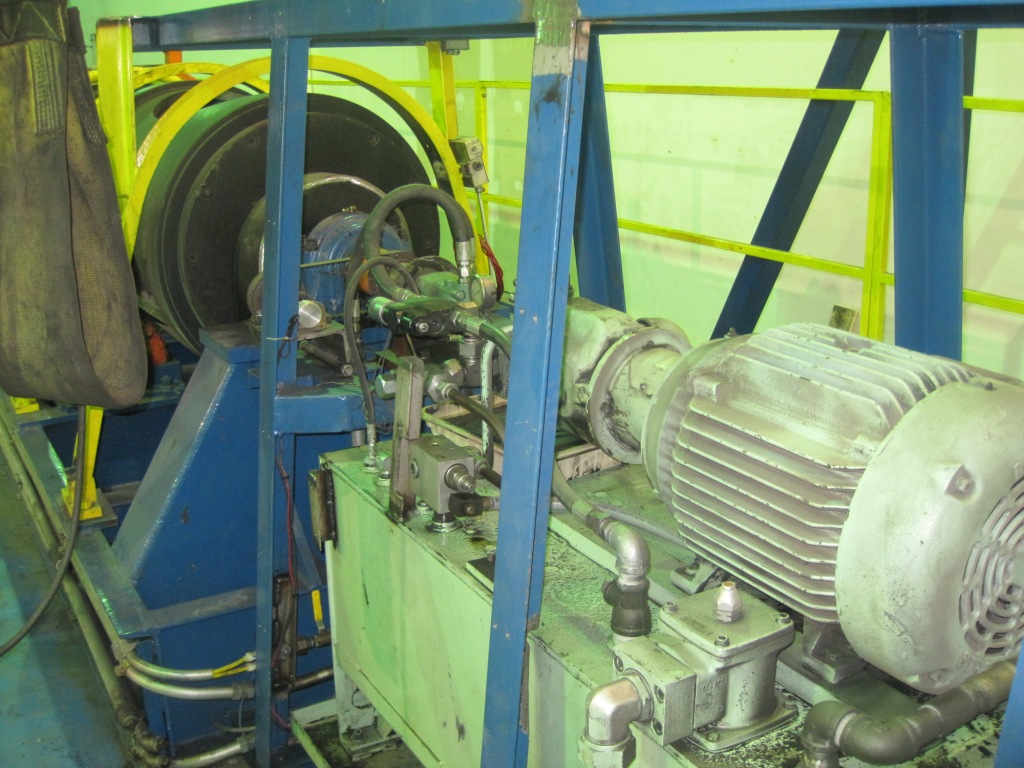

Hydraulic Drive
2 plane wire straightener - preformer
36"(760 mm ) diameter x 9"(230 mm) wide single wheel capstan

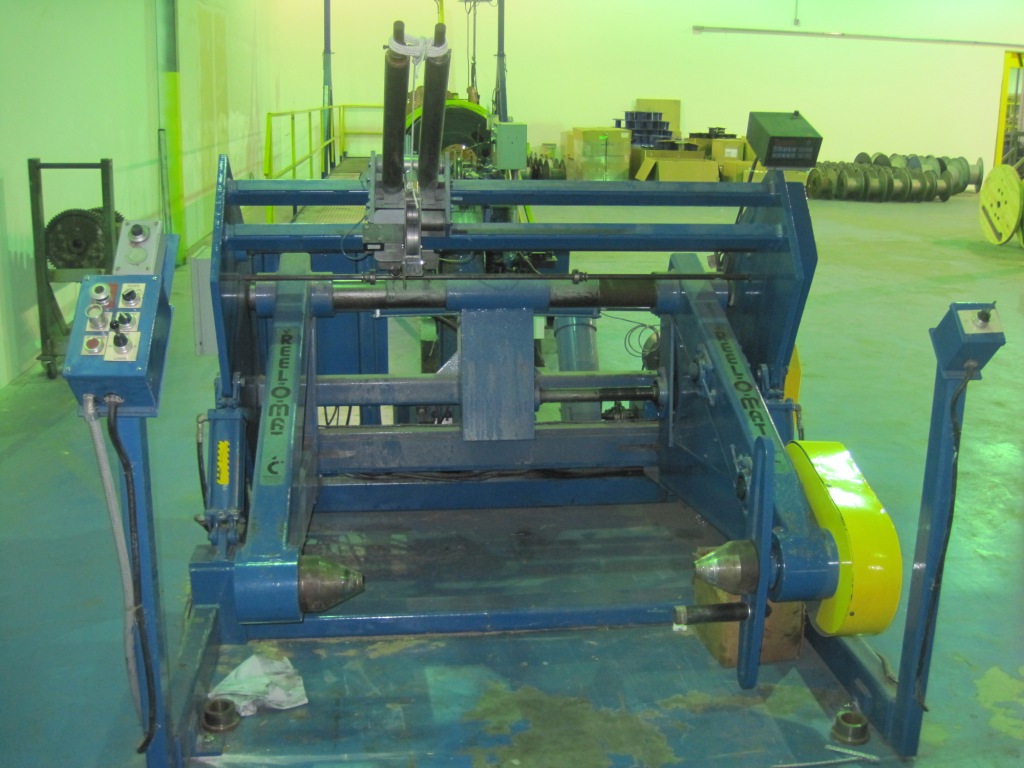

60" (1500 mm) Reel-O-Matic Shaftless Take-up, 2 HP motor
Operator Platform
230-460 V / 3 Ph / 60 Hz

Floor space requirement: 23m x 3.6 wide (75' long x 12' wide)

Coffing 1 Ton Electric Chain Hoist with Gantry System (Converting to Hydraulic Drive)

(7)  24"(610 mm ) x 11"( 280mm ) Traverse x 12"(305 mm ) Overall width x 1 1/4" Arbor spools
(7)  22" (560 mm) x 11"(380 mm ) x 5"(127 mm ) Arbor spools
