SAMP Rod Breakdown Line
Model TRB-1
Year of Manufacture 1984

Rod Pay Off

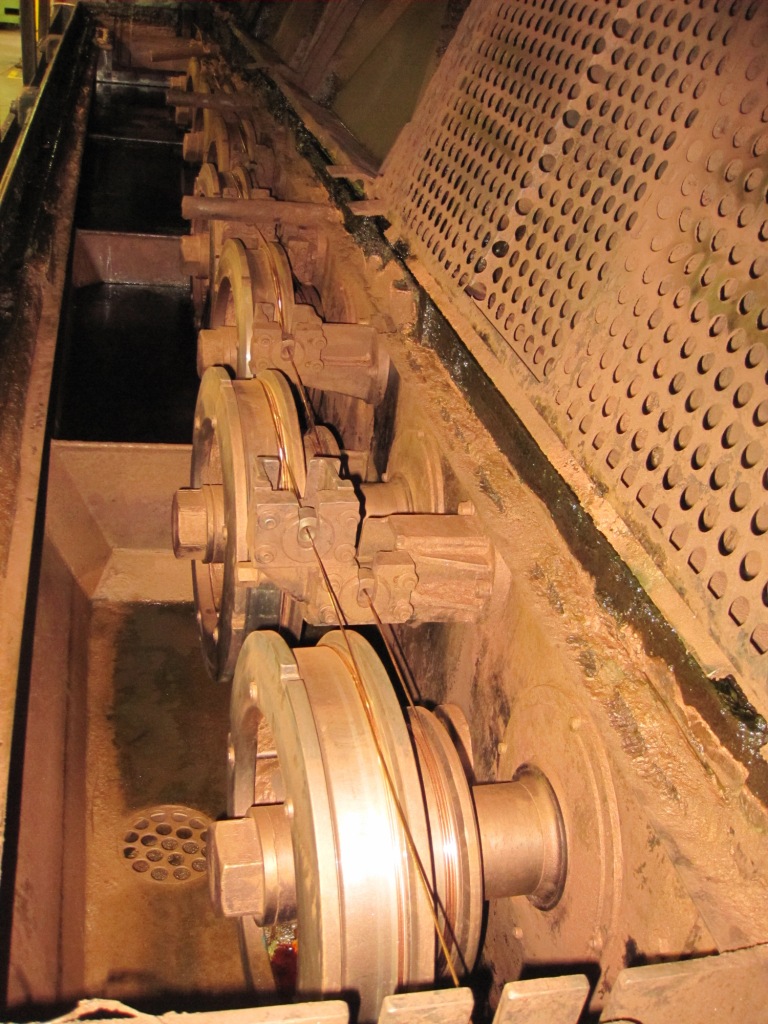

SAMP MS 400 Drawing Machine
Serial No 83058/1T
Year of Manufacture 1984
Number of dies: 13
Number of shafts: 8
Maximum Inlet: 8 mm
Outlet Range: 3.5 mm - 1.0 mm
Diameter of drawing capstans: 400mm
Lining of capstans: Rizardi Carbide
300 HP DC Drive


SAMP Rod Annealer
Model RC/80
No 7850
Serial No 83058/1A
Year of Manufacture 1984
55V, 4000 Amps

SAMP 800 mm Drop Coiler
Model AS/3
Serial Number 83058/1M
No 8013
Year of Manufacture 1984
Performance:
Maximum speed: 35 m/s

Electrics: 460V 3 Phase 60 Hz

Includes:

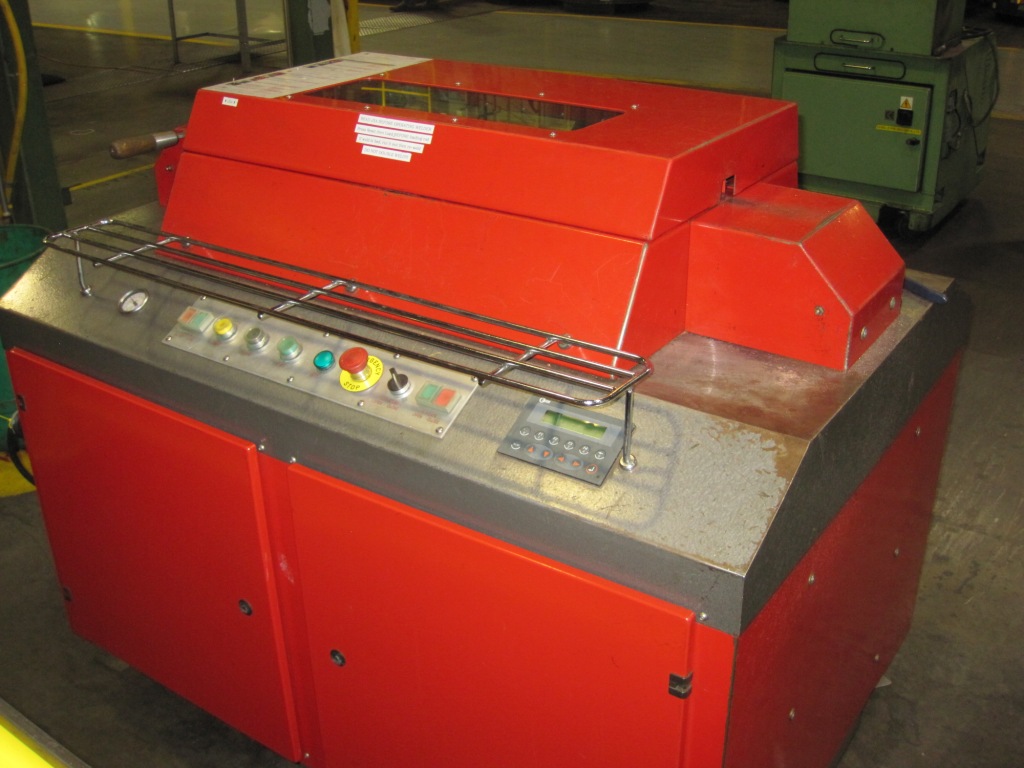

Rod Pointer Stringer

BWE Koldwelder Welder for Rod
Model CBW8
Serial Number 0158
4.0kw, 480V, 3 phase, 60 hz .312 dies
PWM Rod Welder
Stem Packs: 1000 mm O.D. x 630 mm ID x 1970 mm High, 2000 kgs max.
