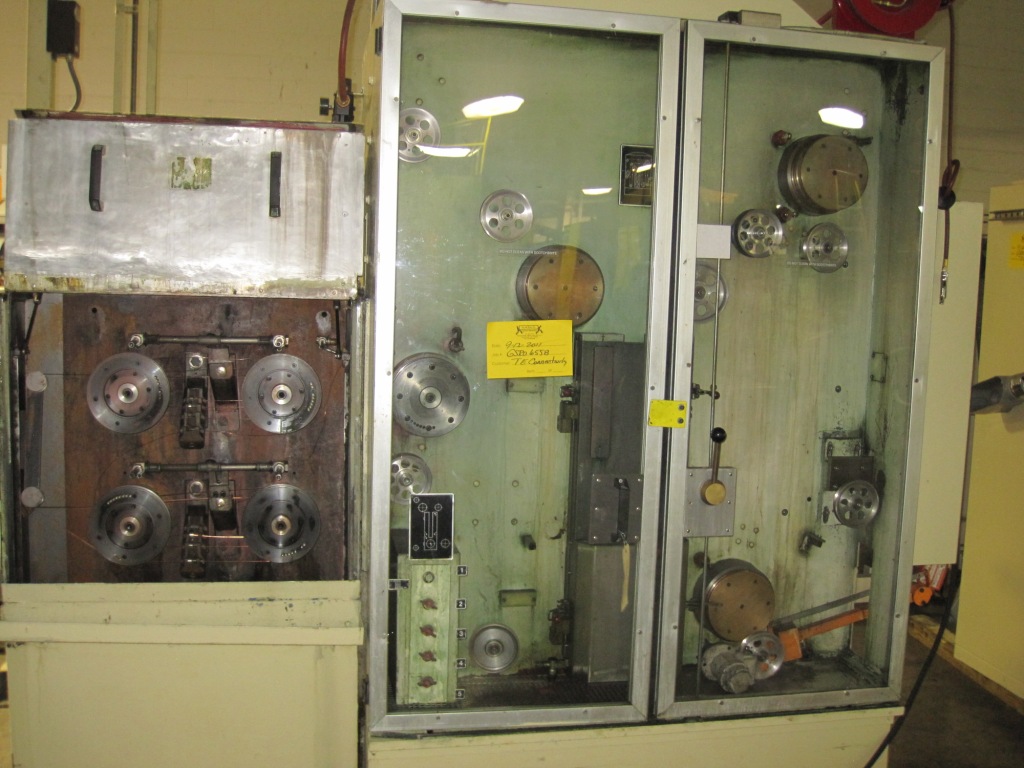

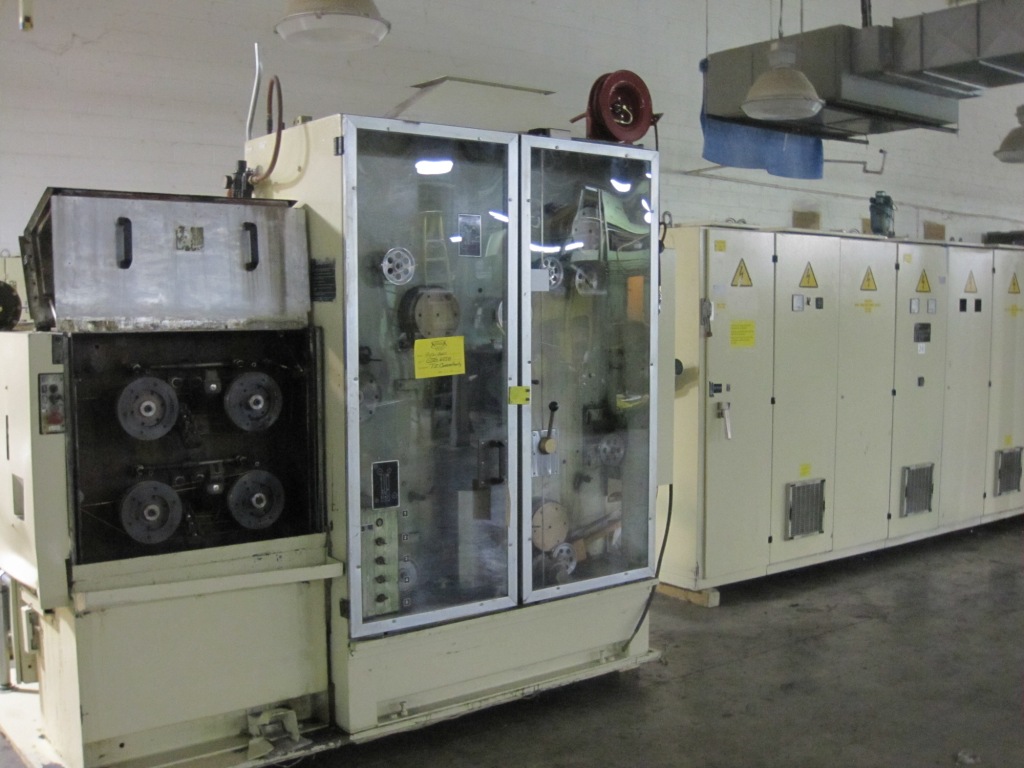

Niehoff Fine Wire Drawing Machine with Annealer
For a tandem line
Model: MT-200
Year of Manufacture: 1997
Line Direction: Left to Right
For Cu. Wire (Soft / Hard)
Maximum Number of Drafts: 17
Wire Elongation draft (%): 26
Maximum Line Speed: 40 meters per second / 7,800 FPM
Maximum Entry size: 2.9mmm - 2.6mm (9 - 10 AWG)
Finish Diameter Range: 0.90mm - 0.30mm (19 - 28 AWG)

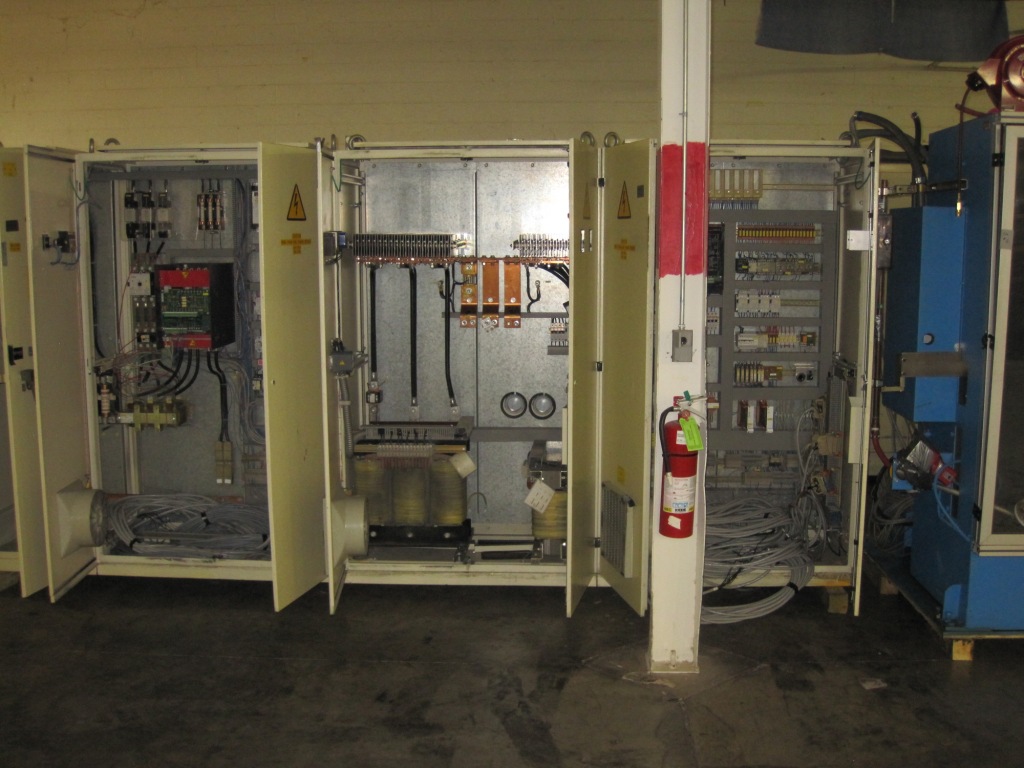

(1) Siemens Motor 86kW, 163 Amps, 580V

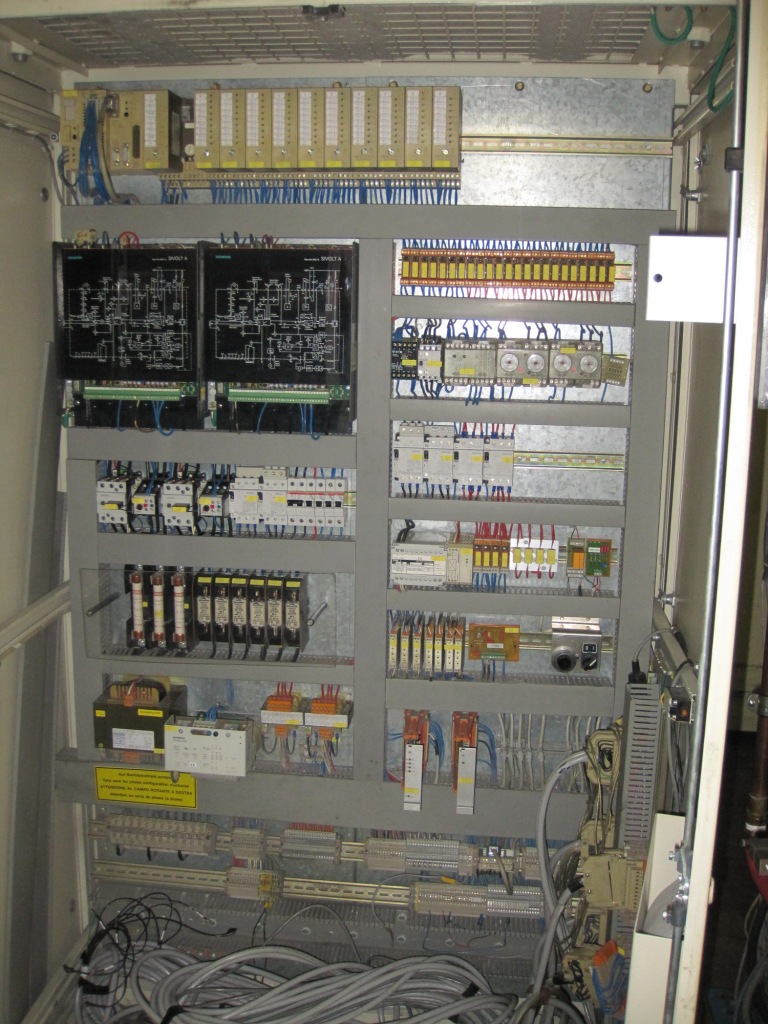

(1) Siemens SIMOREG Drive D485
(2) Siemens SIVOLT 6SG241-3A00
(1) 44 kVA Transformer 50 / 60 Hz
(1) 21 kVA Transformer 50 / 60 Hz
Electrics: 400 V, 3 Phase, 60 Hz
GBC Stem Payoff, 11' High
INC Single Payoff automatic changeover system with dancer accumulator

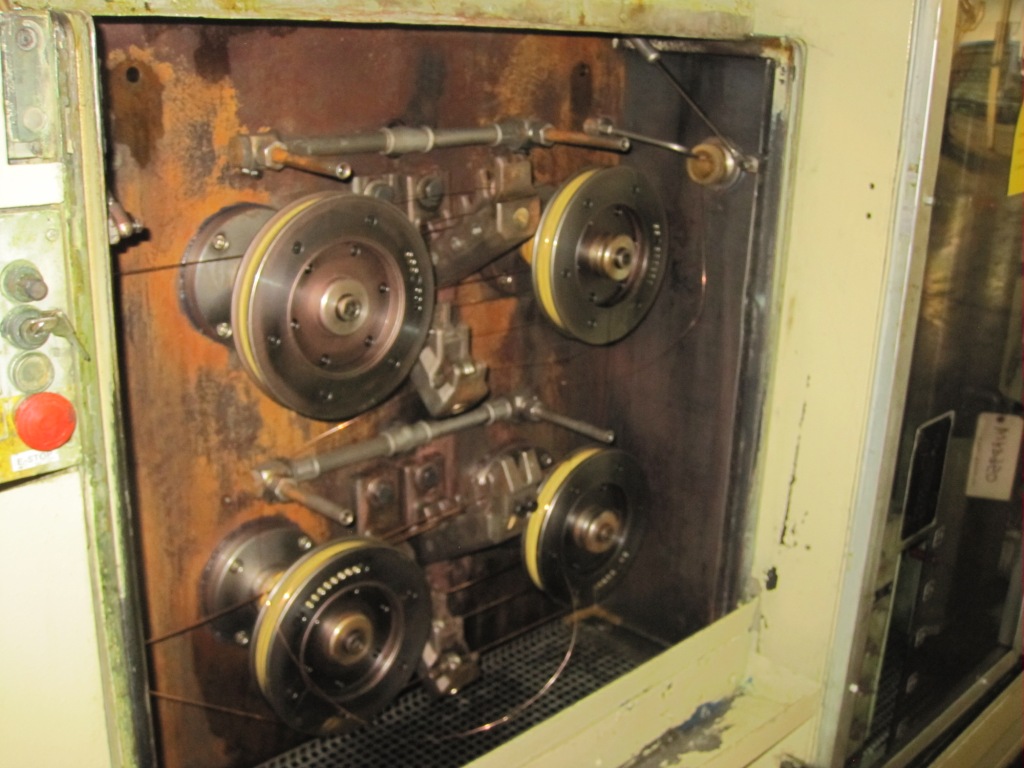

(6) 8" diameter sheaves x 1/2" wide
Serial Number: 140. Year of Manufature: 1997
