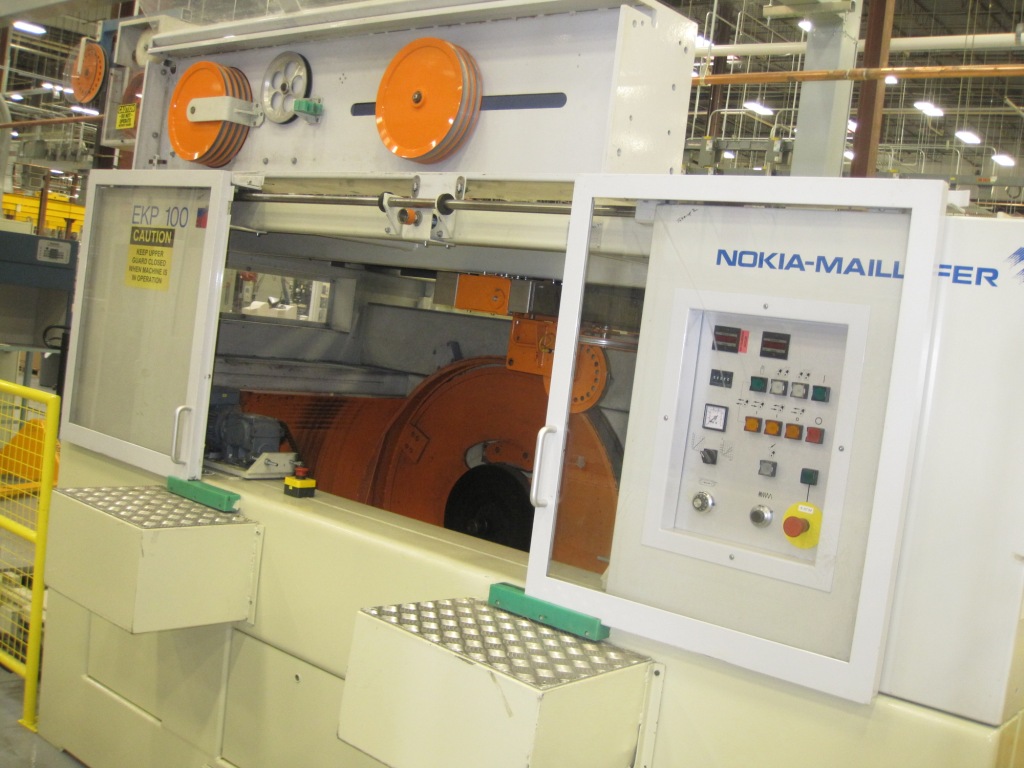

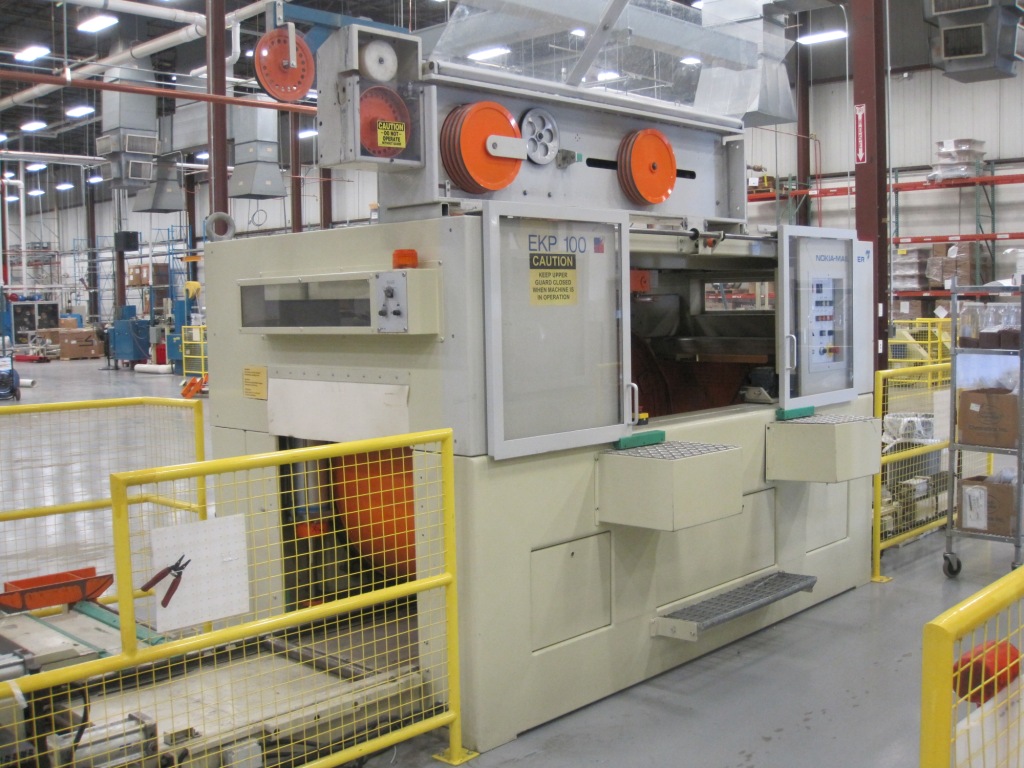

1.0 m Nokia Maillifer Model EKP-100-138 Dual Reel Take Up


Year of manufacture: 1997
Specifications:
Wire diameter range: 0.8 mm to 5.0 mm
Diameter over insulation range: 1.2 mm to 12.0 mm
Maximum winding speed: 1500 m/min
Reel speed range: 15 to 800/12000 RPM
Maximum reel flange diameter: 1060 mm
Minimum reel flange diameter: 500 mm
Minimum reel barrel diameter: 250 mm
aximum reel overall width: 950 mm
Maximum reel weight: 1000 Kg
Direction : Left to Right
Overhead Dancer

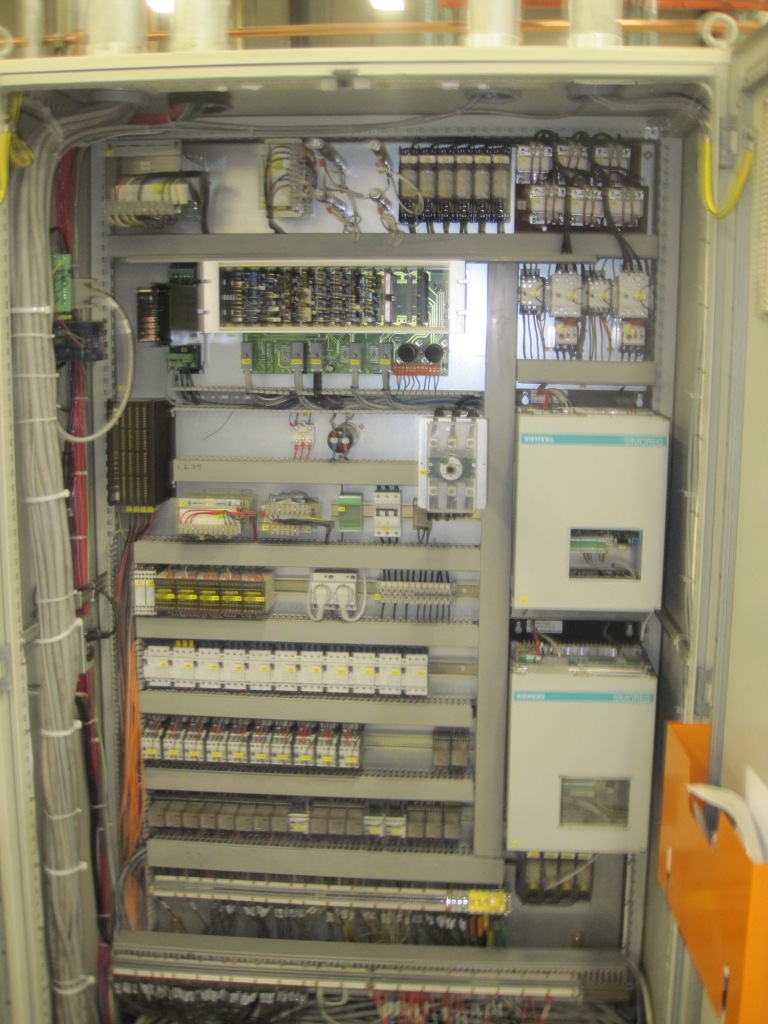

Siemens Simoreg Drives
Eberle PLC
